MASTERlayer 120 | Foil and mesh layer

General mode of functioning

The MASTERlayer120 is a tried-and-tested packaging machine that has been constantly further developed. Various packaging materials, such as foils, meshes, and paper, are inserted as intermediate layers or applies as top layers.During the process, the packing material is unwound from a roll, pulled out to variable lengths, cut, and is then placed on the product. The MASTERlayer120 is designed as a standalone machine that works at a right angle to the direction of the relevant conveyor, making it easy to integrate it into practically any system.

Ihre Vorteile:

  • Guiding systems
  • State-of-the-art drive system
  • Virtually maintenance-free
  • High level of precision
  • High level of operational safety and reliability
  • Easy to use
  • Low-cost packing methods

General Data

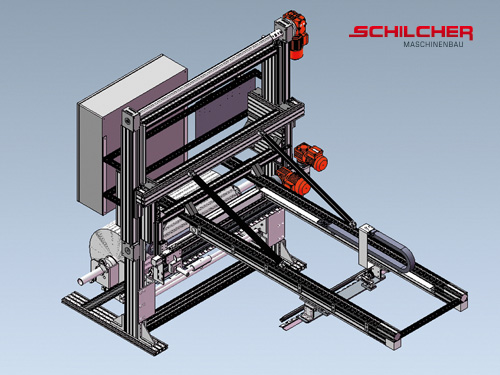

Machine drawing MASTERlayer120, Foil and mesh layer
Finish RAL 7035, RAL 7016, RAL 3020
Total weight 800 kg

Technical Specifications

Length/width/height ca. 3.350/1.965/2.560 mm
Drum width max. 1.200 mm
Drum diameter max. 600 mm
Working height 700 mm
Vertical lift max. 500 mm
Pull-off length max. 1.900 mm
Cycle time ca. 12 sec.
Positioning mittels Wegabnehmer
Linear drives elektromechanisch
Linear movements Präzisionsgeführte Riementriebe
Cutting unit Spezialschneidrad mit Luftmotor
Service medium Druckluft gefiltert, geölt oder ungeölt
Operating pressure 6 bar
Controller Siemens S7/300
Total drive power 1,2 kW
Connected voltage 400 V
